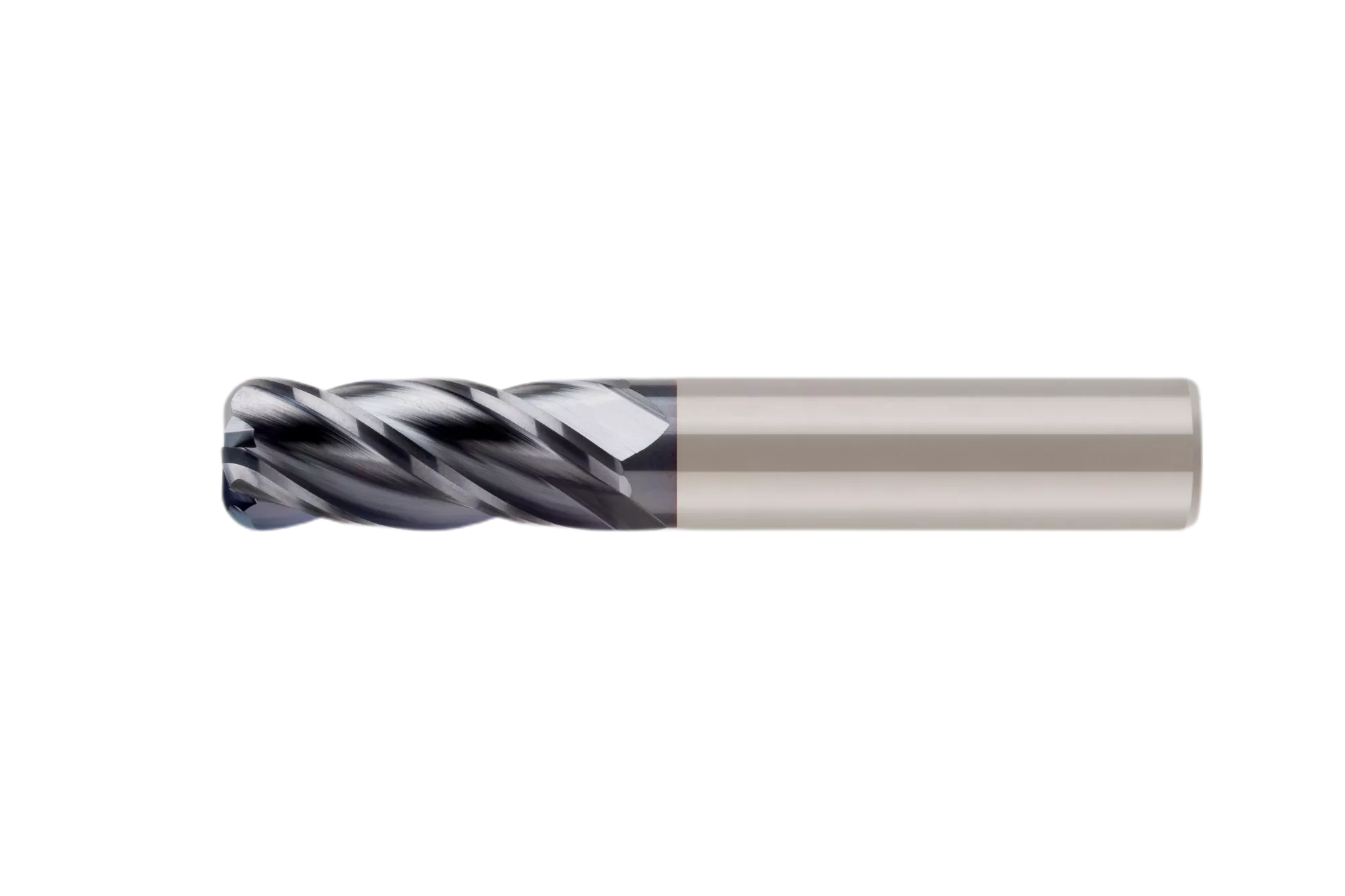

Carbide Corner Radius End Mills-Standard-4 Flutes
Merchandise number：RM4AL
左右滑動看表格| 型號 Order No. |
刃徑 (D) |
R角 (R) |
刃長 (ℓ) |
柄徑 (d) |
全長 (L) |
刃數 Flutes |
| RM4AL-1*0.1R | 1 | 0.1R | 3 | 4 | 50 | 4 |
| RM4AL-1*0.2R | 1 | 0.2R | 3 | 4 | 50 | 4 |
| RM4AL-1*0.3R | 1 | 0.3R | 3 | 4 | 50 | 4 |
| RM4AL-1.5*0.2R | 1.5 | 0.2R | 4 | 4 | 50 | 4 |
| RM4AL-1.5*0.3R | 1.5 | 0.3R | 4 | 4 | 50 | 4 |
| RM4AL-2*0.2R | 2 | 0.2R | 6 | 4 | 50 | 4 |
| RM4AL-2*0.3R | 2 | 0.3R | 6 | 4 | 50 | 4 |
| RM4AL-2*0.5R | 2 | 0.5R | 6 | 4 | 50 | 4 |
| RM4AL-2.5*0.2R | 2.5 | 0.2R | 8 | 4 | 50 | 4 |
| RM4AL-3*0.2R | 3 | 0.2R | 8 | 3/4 | 50 | 4 |
| RM4AL-3*0.3R | 3 | 0.3R | 8 | 3/4 | 50 | 4 |
| RM4AL-3*0.5R | 3 | 0.5R | 8 | 3/4 | 50 | 4 |
| RM4AL-3*1R | 3 | 1R | 8 | 3/4 | 50 | 4 |
| RM4AL-4*0.2R | 4 | 0.2R | 10 | 4 | 50 | 4 |
| RM4AL-4*0.3R | 4 | 0.3R | 10 | 4 | 50 | 4 |
| RM4AL-4*0.5R | 4 | 0.5R | 10 | 4 | 50 | 4 |
| RM4AL-4*1R | 4 | 1R | 10 | 4 | 50 | 4 |
| RM4AL-4*1.5R | 4 | 1.5R | 10 | 4 | 50 | 4 |
| RM4AL-5*0.2R | 5 | 0.2R | 13 | 6 | 50 | 4 |
| RM4AL-5*0.3R | 5 | 0.3R | 13 | 6 | 50 | 4 |
| RM4AL-5*0.5R | 5 | 0.5R | 13 | 6 | 50 | 4 |
| RM4AL-5*1R | 5 | 1R | 13 | 6 | 50 | 4 |
| RM4AL-6*0.2R | 6 | 0.2R | 15 | 6 | 50 | 4 |
| RM4AL-6*0.3R | 6 | 0.3R | 15 | 6 | 50 | 4 |
| RM4AL-6*0.5R | 6 | 0.5R | 15 | 6 | 50 | 4 |
| RM4AL-6*1R | 6 | 1R | 15 | 6 | 50 | 4 |
| RM4AL-6*1.5R | 6 | 1.5R | 15 | 6 | 50 | 4 |
| RM4AL-6*2R | 6 | 2R | 15 | 6 | 50 | 4 |
| RM4AL-8*0.3R | 8 | 0.3R | 20 | 8 | 60 | 4 |
| RM4AL-8*0.5R | 8 | 0.5R | 20 | 8 | 60 | 4 |
| RM4AL-8*1R | 8 | 1R | 20 | 8 | 60 | 4 |
| RM4AL-8*1.5R | 8 | 1.5R | 20 | 8 | 60 | 4 |
| RM4AL-8*2R | 8 | 2R | 20 | 8 | 60 | 4 |
| RM4AL-8*2.5R | 8 | 2.5R | 20 | 8 | 60 | 4 |
| RM4AL-8*3R | 8 | 3R | 20 | 8 | 60 | 4 |
| RM4AL-10*0.3R | 10 | 0.3R | 25 | 10 | 75 | 4 |
| RM4AL-10*0.5R | 10 | 0.5R | 25 | 10 | 75 | 4 |
| RM4AL-10*1R | 10 | 1R | 25 | 10 | 75 | 4 |
| RM4AL-10*1.5R | 10 | 1.5R | 25 | 10 | 75 | 4 |
| RM4AL-10*2R | 10 | 2R | 25 | 10 | 75 | 4 |
| RM4AL-10*2.5R | 10 | 2.5R | 25 | 10 | 75 | 4 |
| RM4AL-10*3R | 10 | 3R | 25 | 10 | 75 | 4 |
| RM4AL-12*0.3R | 12 | 0.3R | 30 | 12 | 75 | 4 |
| RM4AL-12*0.5R | 12 | 0.5R | 30 | 12 | 75 | 4 |
| RM4AL-12*1R | 12 | 1R | 30 | 12 | 75 | 4 |
| RM4AL-12*1.5R | 12 | 1.5R | 30 | 12 | 75 | 4 |
| RM4AL-12*2R | 12 | 2R | 30 | 12 | 75 | 4 |
| RM4AL-12*2.5R | 12 | 2.5R | 30 | 12 | 75 | 4 |
| RM4AL-12*3R | 12 | 3R | 30 | 12 | 75 | 4 |
