SPMG 快速鑽頭-二倍長
左右滑動看表格| 規格表 | ||||||||

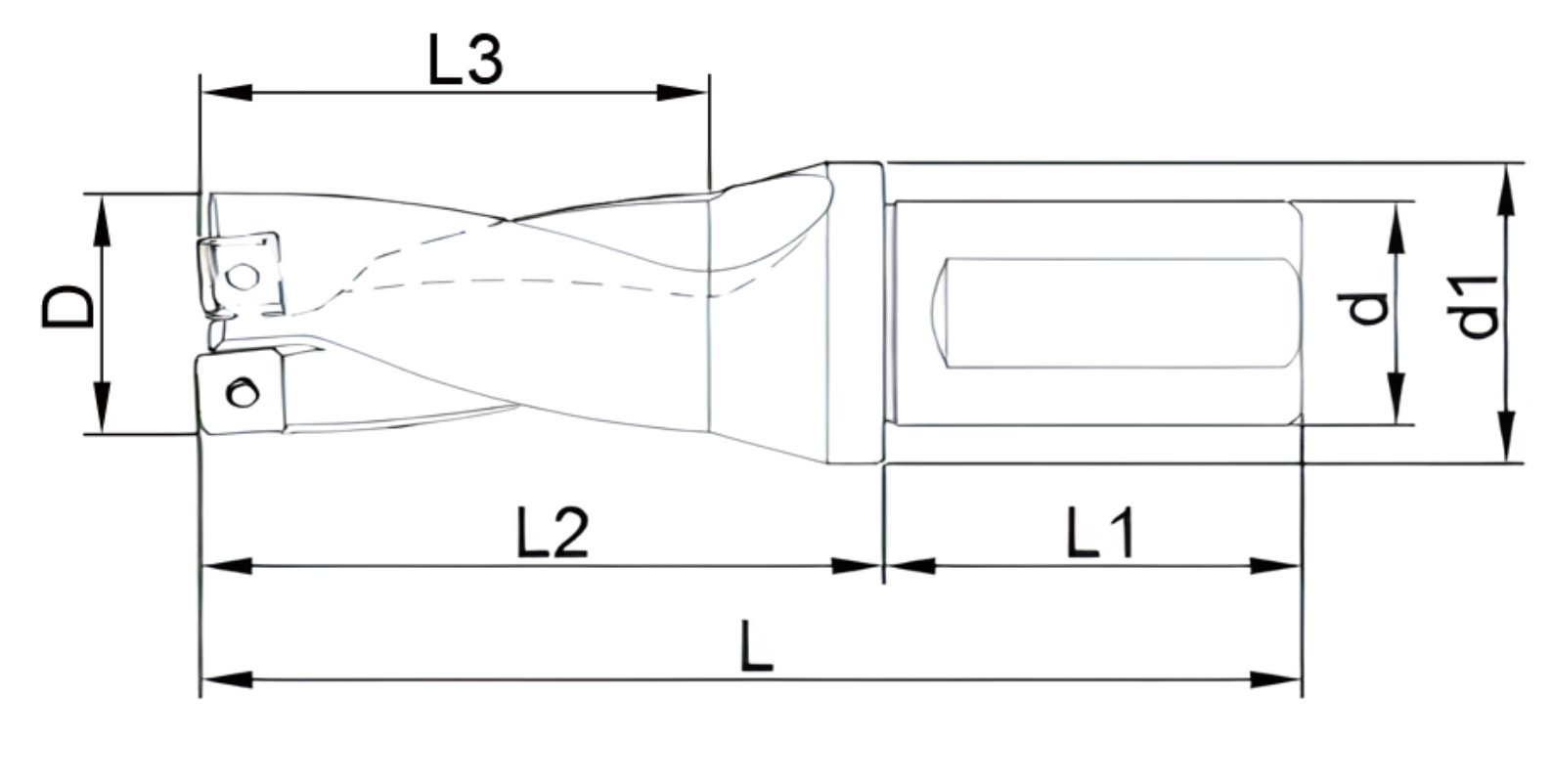

| 型號 | D | d | d1 | L | L3 | L2 | L1 | 刀片型號 |
| DAC20-SP12.5×2D-05 | 12.5 | 20 | 27 | 94 | 26 | 44 | 50 | SPMG050204 |
| DAC20-SP13.0×2D-05 | 13 | |||||||
| DAC20-SP13.5×2D-05 | 13.5 | 96 | 28 | 46 | ||||
| DAC20-SP14.0×2D-05 | 14 | |||||||
| DAC20-SP14.5×2D-05 | 14.5 | 99 | 30 | 49 | ||||
| DAC20-SP15.0×2D-05 | 15 | |||||||
| DAC20-SP15.5×2D-06 | 15.5 | 25 | 33 | 108 | 32 | 52 | 56 | SPMG060204 |
| DAC20-SP16.0×2D-06 | 16 | |||||||
| DAC20-SP16.5×2D-06 | 16.5 | 110 | 34 | 54 | ||||
| DAC20-SP17.0×2D-06 | 17 | |||||||
| DAC20-SP17.5×2D-06 | 17.5 | 113 | 36 | 57 | ||||
| DAC20-SP18.0×2D-06 | 18 | |||||||
| DAC20-SP18.5×2D-06 | 18.5 | 115 | 38 | 59 | ||||
| DAC20-SP19.0×2D-06 | 19 | |||||||
| DAC20-SP19.5×2D-06 | 19.5 | 119 | 40 | 63 | ||||
| DAC20-SP20.0×2D-06 | 20 | |||||||
| DAC20-SP20.5×2D-06 | 20.5 | 121 | 42 | 65 | ||||
| DAC20-SP21.0×2D-06 | 21 | |||||||
| DAC20-SP21.5×2D-06 | 21.5 | 123 | 44 | 67 | ||||
| DAC20-SP22.0×2D-06 | 22 | SPMG07T308 | ||||||
| DAC20-SP22.5×2D-07 | 22.5 | 32 | 43 | 131 | 46 | 71 | 60 | |
| DAC20-SP23.0×2D-07 | 23 | |||||||
| DAC20-SP23.5×2D-07 | 23.5 | 134 | 48 | 74 | ||||
| DAC20-SP24.0×2D-07 | 24 | |||||||
| DAC20-SP24.5×2D-07 | 24.5 | 137 | 50 | 77 | ||||
| DAC20-SP25.0×2D-07 | 25 | |||||||
| DAC20-SP25.5×2D-07 | 25.5 | 139 | 52 | 79 | ||||
| DAC20-SP26.0×2D-07 | 26 | |||||||
| DAC20-SP26.5×2D-07 | 26.5 | 142 | 54 | 81 | ||||
| DAC20-SP27.0×2D-07 | 27 | |||||||
| DAC20-SP27.5×2D-07 | 27.5 | 144 | 56 | 84 | ||||
| DAC20-SP28.0×2D-09 | 28 | SPMG090408 | ||||||
| DAC20-SP28.5×2D-09 | 28.5 | 146 | 58 | 86 | ||||
| DAC20-SP29.0×2D-09 | 29 | |||||||
| DAC20-SP29.5×2D-09 | 29.5 | 148 | 60 | 88 | ||||
| DAC20-SP30.0×2D-09 | 30 | |||||||
| DAC20-SP30.5×2D-09 | 30.5 | 150 | 62 | 90 | ||||
| DAC20-SP31.0×2D-09 | 31.0 | |||||||
| DAC20-SP31.5×2D-09 | 31.5 | 152 | 64 | 92 | ||||
| DAC20-SP32.0×2D-09 | 32 | |||||||
| DAC20-SP32.5×2D-09 | 32.5 | 154 | 66 | 94 | ||||
| DAC20-SP33.0×2D-09 | 33 | |||||||
| DAC20-SP34.0×2D-11 | 34 | 156 | 68 | 96 | SPMG110408 | |||
| DAC20-SP35.0×2D-11 | 35 | 158 | 70 | 98 | ||||
| DAC20-SP36.0×2D-11 | 36 | 160 | 72 | 100 | ||||
| DAC20-SP37.0×2D-11 | 37 | 162 | 74 | 102 | ||||
| DAC20-SP38.0×2D-11 | 38 | 164 | 76 | 104 | ||||
| DAC20-SP39.0×2D-11 | 39 | 166 | 78 | 106 | ||||
| DAC20-SP40.0×2D-11 | 40 | 40 | 53 | 185 | 80 | 115 | ||
| DAC20-SP41.0×2D-11 | 41 | 187 | 82 | 117 | ||||
| DAC20-SP42.0×2D-14 | 42 | 189 | 84 | 119 | 70 | SPMG140512 | ||
| DAC20-SP43.0×2D-14 | 43 | 191 | 86 | 121 | ||||
| DAC20-SP44.0×2D-14 | 44 | 193 | 88 | 123 | ||||
| DAC20-SP45.0×2D-14 | 45 | 195 | 90 | 125 | ||||
| DAC20-SP46.0×2D-14 | 46 | 197 | 92 | 127 | ||||
| DAC20-SP47.0×2D-14 | 47 | 199 | 94 | 129 | ||||
| DAC20-SP48.0×2D-14 | 48 | 201 | 96 | 131 | ||||
| DAC20-SP49.0×2D-14 | 49 | 203 | 98 | 133 | ||||
| DAC20-SP50.0×2D-14 | 50 | 205 | 100 | 135 | ||||
